DR-22WL |

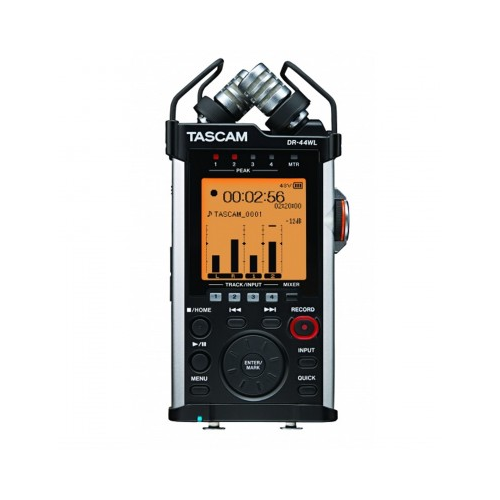

DR-44WL |
| Recording media |
microSD card(64MB to 2GB),
microSDHC card(4GB to 32GB),
microSDXC card(48GB to 128GB) |
SD card(64MB to 2GB),
SDHC card(4GB to 32GB),
SDXC card(48GB to 128GB) |
| Recording format |
|
| WAV/BWF |
|
| Sampling frequency |
44.1kHz/48kHz/96kHz |
| Quantization bit rate |
16bit/24bit |
| MP3 |
|
| Sampling frequency |
44.1kHz/48kHz |
| Recording bit rate |
32k/64k/96k/128k/192k/256k/320k bps |
| Playback bit rate |
32kbps to 320kbps |
| Number of channels |
2-channels (Stereo) |
4-channels |
| 4CH mode |
- |
Mono (Up to 4 files)
Stereo (Up to 2 files)
Stereo (1 file) + Mono (Up to 2 files) |
| MTR mode |
- |
Mono (Up to 4 files) |
| Analog Inputs |
|
| EXT MIC/LINE IN |
|
| Connector |
3.5mm(1/8') stereo mini jack,
Plug-in power Compatible |
XLR-3-31,
6.3mm(1/4') TRS standard jack,
Phantom Power Compatible |
| Input Impendance |
10k ohms or more |
2.2k ohms or more |
| Nominal Input Level |
-20dBV |
- |
| Maximum Input Level |
-4dBV |
- |
| EXT IN [MIC] |
|
| Nominal Input Level |
- |
-17.3dBu +/-2dB |
| Maximum Input Level |
- |
-1.3dBu +/-2dB |
| EXT IN [LINE] |
|
| Nominal Input Level |
- |
+4dBu |
| Maximum Input Level |
- |
+20dBu |
| Analog Outputs |
|
| PHONES/LINE OUT |
|
| Connector |
3.5mm(1/8') stereo mini jack |
| LINE OUT |
|
| Nominal Output Level |
-14dBV(10k ohm load) |
| Maximum Output Level |
+2dBV(10k ohm load) |
| PHONES |
|
| Maximum Output |
20mW+20mW(32ohm load) |
| USB |
|
| Connector |
Micro-B type 4pin |
| Format |
USB2.0 HIGH SPEED mass storage class |
| Wi-Fi |
|
| Compliant |
IEEE 802.11b/g/n(2.4GHz only)) |
| Communication mode |
Simple access point (Limited AP) |
| Security |
WPA2-PSK(WPS2.0-supported) |
| Tripod attachment screw-hole |
1/4' Tripod attachment screw-hole |
| Power Supply |
2 AA batteries (alkaline or NiMH),
USB bus power from a computer,
AC adapter (TASCAM PS-P515U, sold separately) |
4 AA batteries (alkaline or NiMH),
USB bus power from a computer,
Dedicated AC adapter (GPE053B supplied with the unit) |
| Power consumption |
1.7W(maximum) |
2.5W(maximum) |
| Battery operation time |
|
|
| Format |
WAV, 44.1 kHz, 16 bit |
| Alkaline batteries (EVOLTA) |
|
| Recording |
About 17.5 hours (With built-in mic) |
About 16 hours (When MIC input is selected, phantom is not used) |
| Playback |
About 19 hours (With built-in speaker) |
- |
| Ni-MH batteries (eneloop) |
|
| Recording |
About 13.5 hours (With built-in mic) |
About 12 hours (When MIC input is selected, phantom is not used) |
| Playback |
About 14.5 hours (With built-in speaker) |
- |
| Dimensions |
6.1" H x 2.1" W x 1.4" D
(155mm H x 52.2mm W ×36.6mm D) |
6.3" L x 3.1" W x 1.7" H
(79mm L ×162.2mm W × 42.5mm H) |
| Weight |
6.0oz including batteries (170g) /
4.3oz without batteries (123g) |
12.2 oz including batteries (346g) /
8.8oz without batteries (251g) |
| Accessories |
4GB microSD card (in the unit), USB cable, 2 AA batteries for confirming operation, Owner's Manual (including warranty) |
AC adapter (GPE053B), 4GB microSD card with adapter (in the unit), USB cable (80 cm), 4 AA batteries for confirming operation, Fur windscreen, Mic stand adapter, Hot shoe adapter, Soft case, Owner's Manual (including warranty) |
